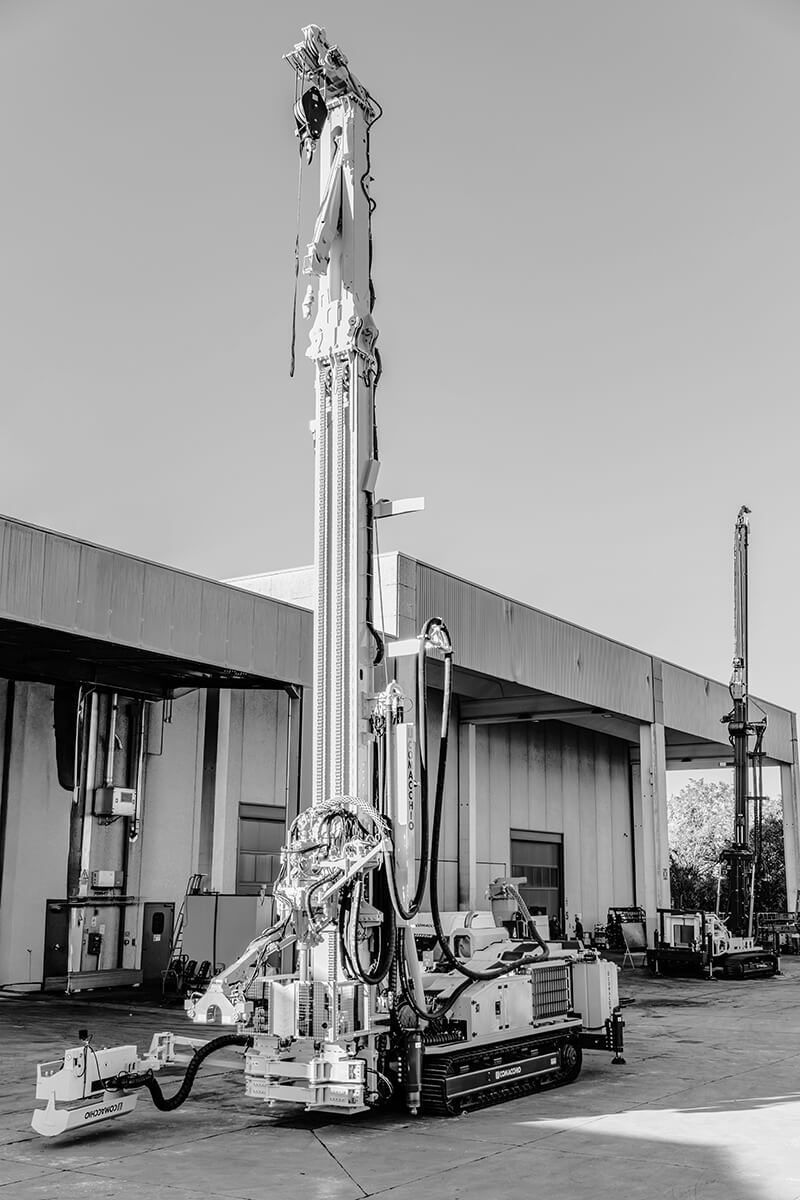

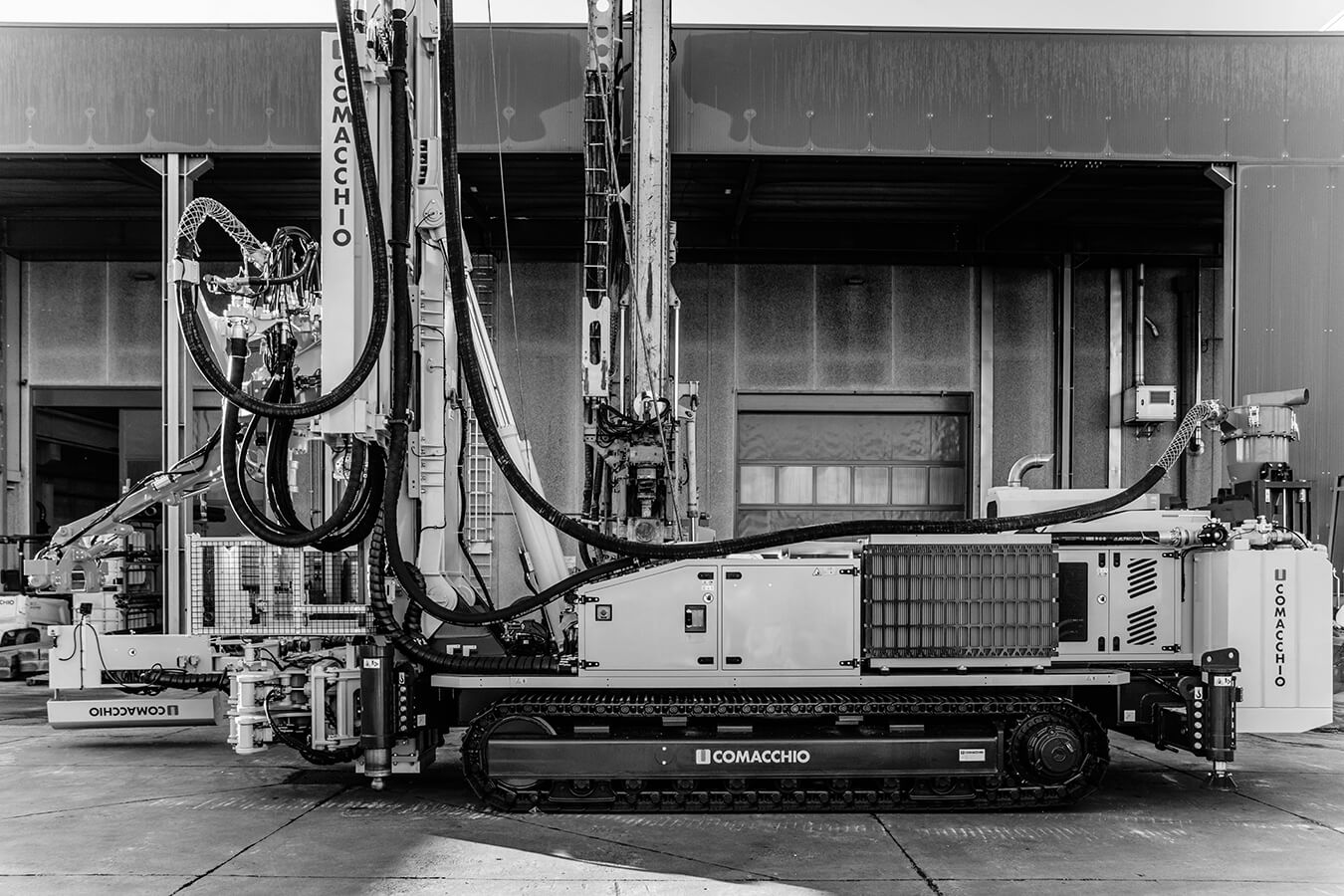

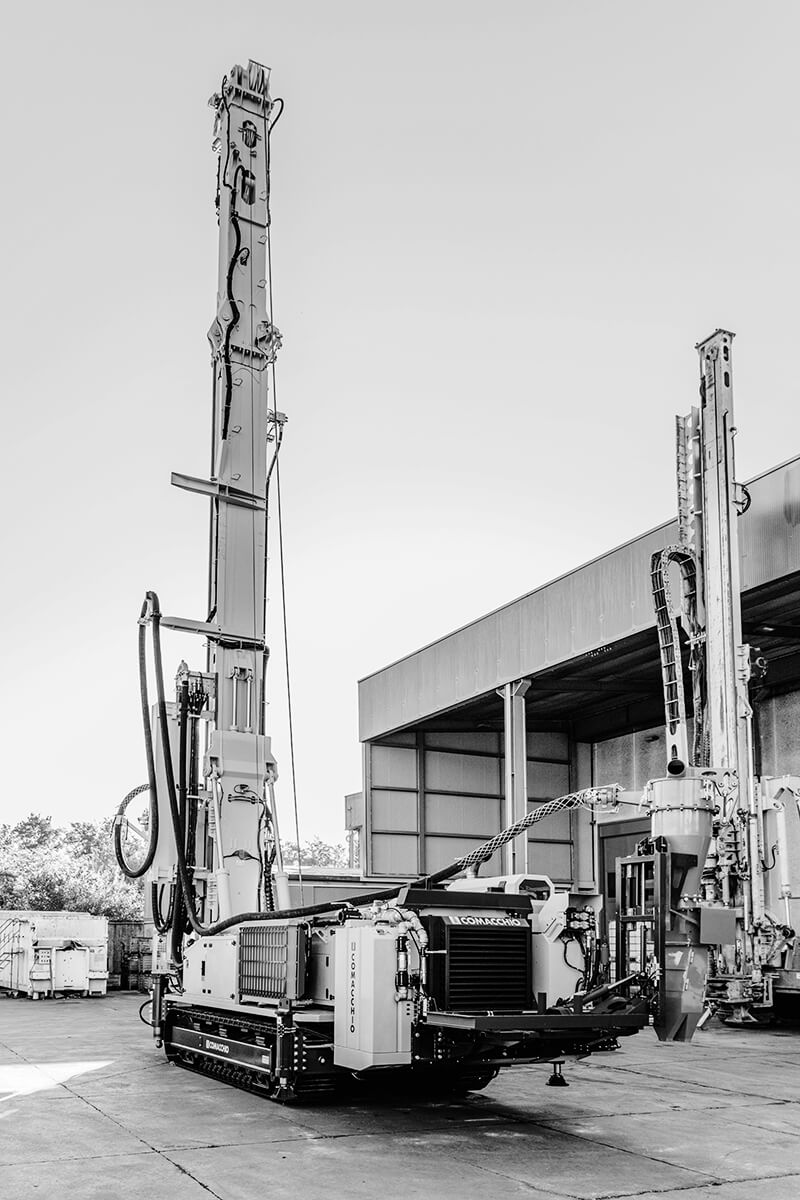

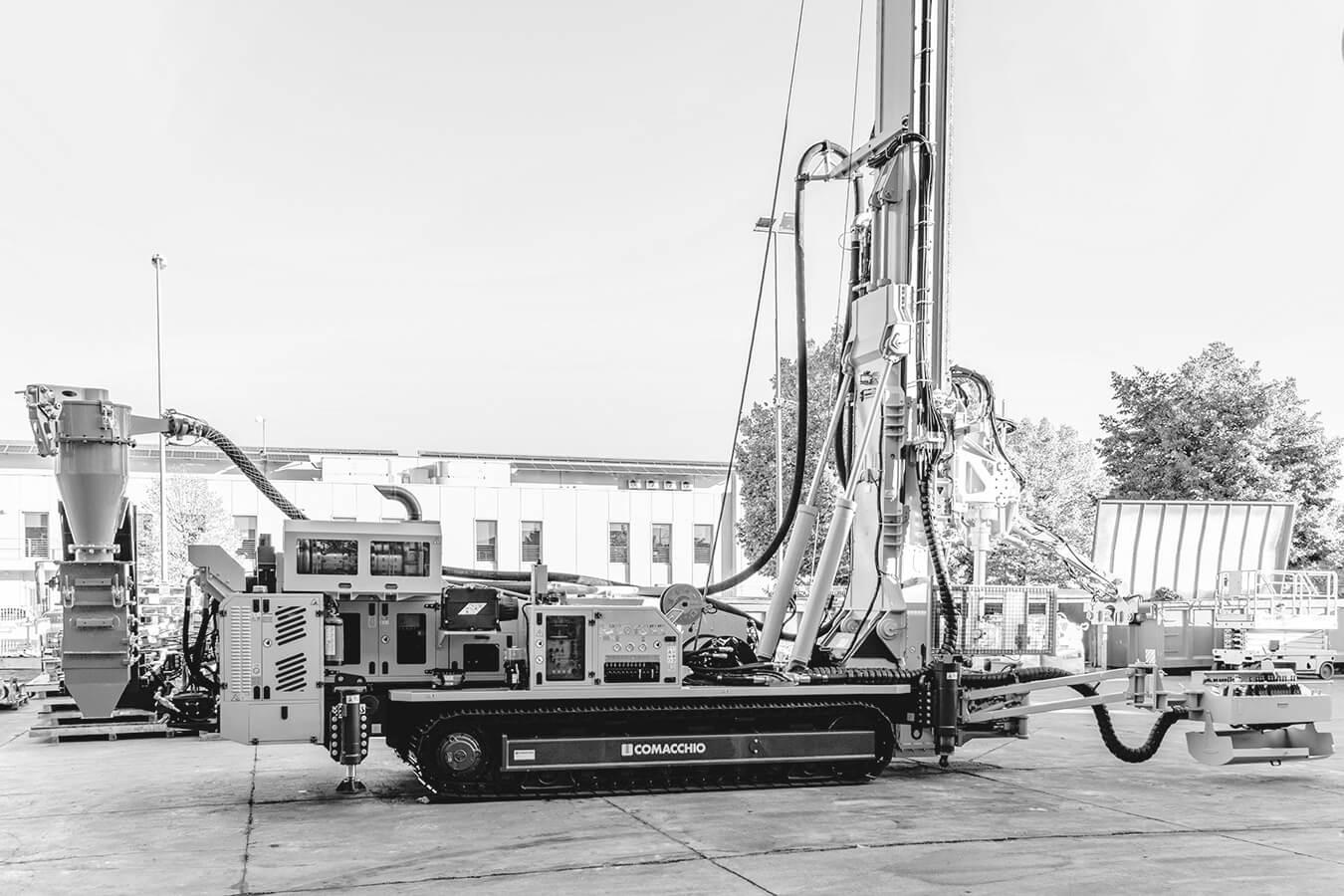

CX 50
Change unit:
/
|
Engine Power |
272 - 291 kW | 364 - 390 HP |
|
Emission Level |
Stage 3A/Tier 3 Stage 5/Tier 4f |
Stage 3A/Tier 3 Stage 5/Tier 4f |
|
Retract force |
50.000 daN | 112,404 lbs |
|
Feed force |
20.000 daN | 44,962 lbs |
|
Feed stroke |
7.500 mm | 24' 7" |
|
Rotary max torque |
31.000 Nm | 22,864 lb*ft |
|
Rotary max speed |
180 rpm | 180 rpm |
|
Clamping range |
60 - 520 mm | 2" 3/8 - 1' 8" |
|
Weight range |
35 - 37 t | 77,162 - 81,571 lbs |
| Safety systems | ||
|---|---|---|
| Safety Protection Cage | ||
| Dust Diverter & Suppression Hood | ||
| Radiocontrol | ||
| Rod handling system | ||
|---|---|---|
| Pipe Loader Arm | ||
Discover Our Exploration Range
